Batmobile Forum


  Intake turbine
 From: Nitro | Posted: 10/7/2005 10:05:22 AM |
Imcompensating

Posts: 741
Intake turbine

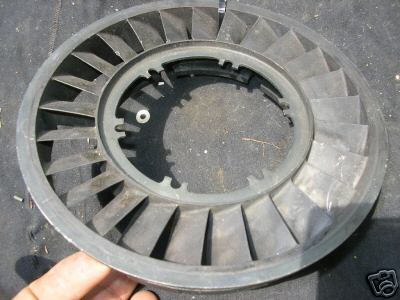

I thought this pic would be a good example of how to mock up the fan blade . This one sold on e-bay but was way toosmall but still gives you a good idea how to get started.

Last Edited by Nitro: 10/7/2005 10:07:25 AM

 From: Kevin | Posted: 10/7/2005 1:38:30 PM |
Nodeman

Posts: 906
RE: Intake turbine

I want to see what the turbine blades you purchased look like....


 From: Nitro | Posted: 10/7/2005 4:21:22 PM |
Imcompensating

Posts: 741
RE: Intake turbine





 From: n8mobiles | Posted: 10/7/2005 5:21:37 PM |

Posts: 432
RE: Intake turbine

It would not be hard to hook up the fan to the motor, and use it for a cooling device, has anyone done something like this? Watch those little kid fingers though.



 From: Kevin | Posted: 10/7/2005 10:08:06 PM |
Nodeman

Posts: 906
RE: Intake turbine

Turbine section looks great, I checked my mail box and I dont see mine yet. Nice sandals nitro....


 From: Nitro | Posted: 10/7/2005 10:26:20 PM |
Imcompensating

Posts: 741
RE: Intake turbine

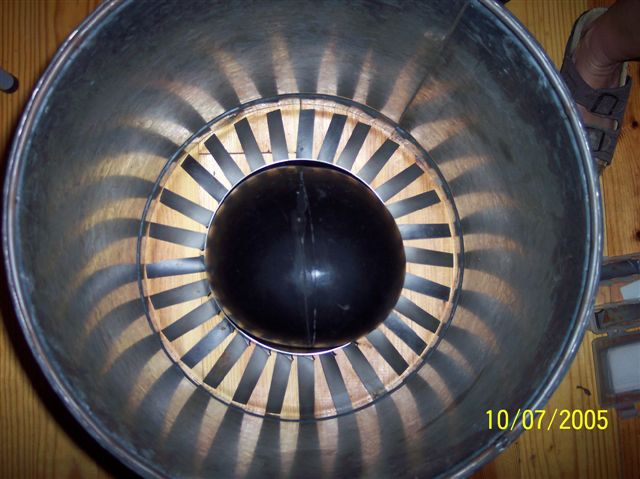

Not really needs a lot of work,but i just laid the the blades in to show you how they fit in the housing.They are not put in correct spacing.
THAT IS NOT MY SANDALS THATS MY WIFE'S FEET,MY FEET ARE MUCH MUCH BIGGER THAN THAT.



 From: Webmaster | Posted: 10/7/2005 10:57:30 PM |
Need Life

Posts: 1517
RE: Intake turbine

Kevin,

http://www.chickslovethecar.com/replies.asp?page=1&splash=T&strID=455&txtSearch=



 From: Jack | Posted: 10/7/2005 11:03:37 PM |
Still In-Work

Posts: 1947
RE: Intake turbine

Compressor you morons. (Of course I'm just kidding)

I bet one of you 66 guys started calling it a Tur-bine. You guys love that Tur-bins to speed thing don't you? Come you know you do.

Here's a litle jet engine 101. Like it matters.



A gas turbine engine consists basically of only four parts: a compressor, a combustion chamber, a turbine and an exhaust nozzle.

The compressor consists of a series of fan blades that suck air into the engine and compress it, thereby increasing the pressure, density and temperature of the air.

The compressed air then flows into the combustion chamber where it is mixed with a fine spray of fuel and the mixture ignited. The air expands and escapes through the turbine.

The turbine consists of another series of fan blades coupled directly to the compressor blades. The escaping gases cause the turbine to rotate, which drives the compressor, thereby sucking in more air.

The hot air continues to accelerate out of the engine through the nozzle, producing a powerful stream of air, which drives the aeroplane forward.

For more info Click Here


Last Edited by Jack: 10/8/2005 3:43:10 AM

 From: Nitro | Posted: 10/8/2005 8:08:49 AM |
Imcompensating

Posts: 741
RE: Intake turbine

Actually Jack I started calling it a turbine for the lack of a better word . I got tired of DH calling it the (thingy at the front of the car that has a nose and blades and spins and makes a vroom vroom noise ).


 From: Jack | Posted: 10/8/2005 8:35:57 AM |
Still In-Work

Posts: 1947
RE: Intake turbine

See I was going to blame it on Kevin. I know he's a 66 Batmobile nut. Right Kevin? Tur-bins to speed.....


 From: Jack | Posted: 10/8/2005 8:37:51 AM |
Still In-Work

Posts: 1947
RE: Intake turbine

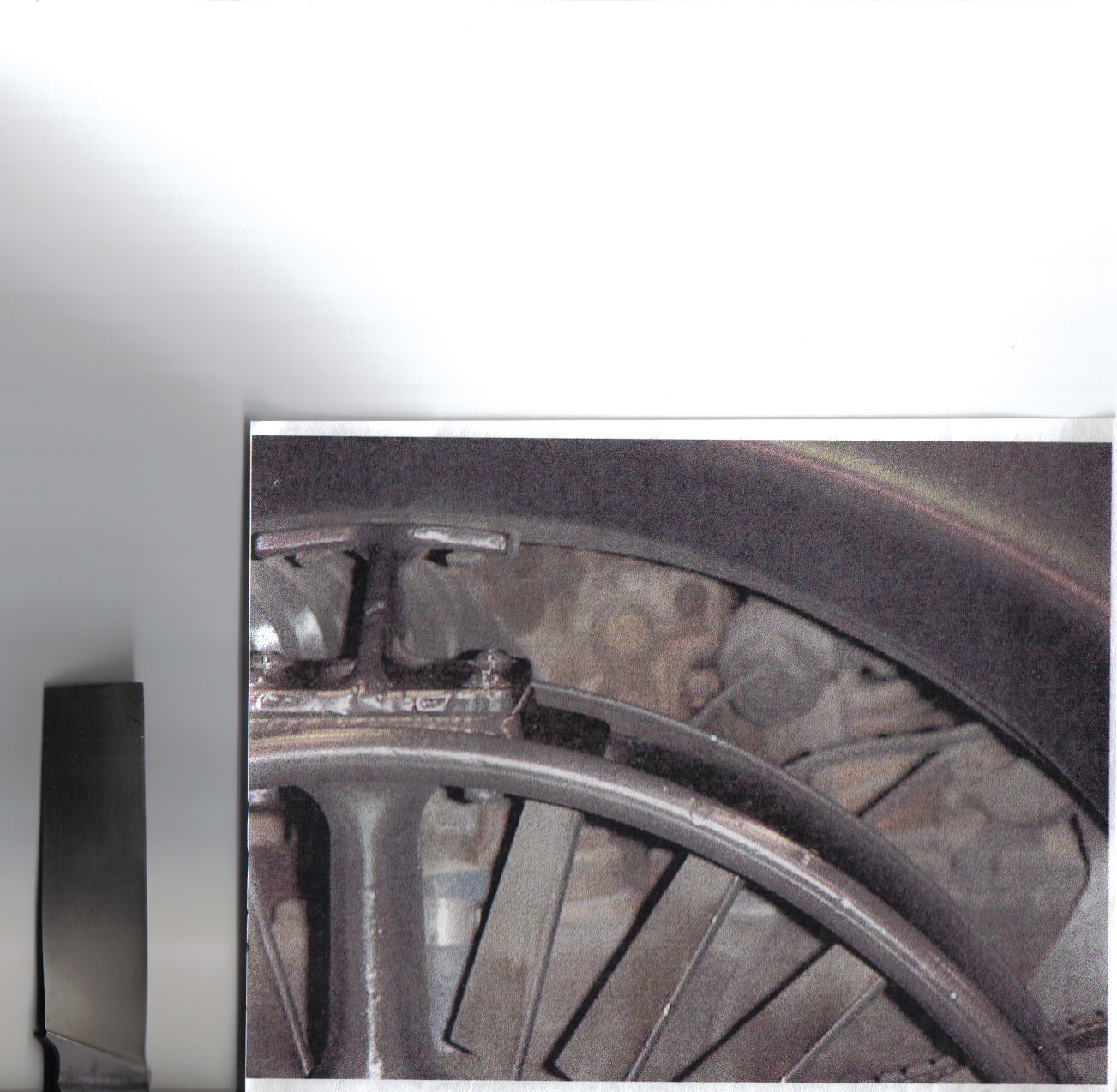

If you want to try to find one it's called an Air Inlet Housing and the first stage are vanes (variable inlet guide vanes) the second set (rotation) is the first stage compressor. I think you custom set will look great.


 From: Nitro | Posted: 10/8/2005 8:38:31 AM |
Imcompensating

Posts: 741
RE: Intake turbine

Not the same but working on it.


 From: Jack | Posted: 10/8/2005 8:43:18 AM |
Still In-Work

Posts: 1947
RE: Intake turbine

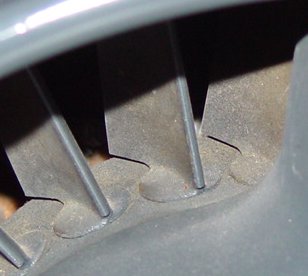

The variable IGV are allowed to move to regulate the amount of air that enters the compressor. Notice the round area at the bottom of the vane. They would all be linked together and when actuated would all open or close.




 From: Tim | Posted: 10/8/2005 12:24:23 PM |
What's this?

Posts: 2411
RE: Intake turbine

I love how detailed we can get...


 From: Kevin | Posted: 10/8/2005 1:23:47 PM |
Nodeman

Posts: 906
RE: Intake turbine

Even a simpler term they suck and blow....

You could at least explain what "IGV" are, Inlet Guide Vanes....

Layman’s terms the spinney finger cutters...


Last Edited by Kevin: 10/10/2005 10:32:04 PM

 From: DonC | Posted: 10/8/2005 6:56:44 PM |

Posts: 159
RE: Intake turbine

LOL!


 From: Webmaster | Posted: 10/21/2005 2:21:40 PM |
Need Life

Posts: 1517
RE: Intake turbine

If you listen to Tim Burton's commentary on Special Disc, he calls it Jet Enginey Thingy in front.


 From: Nitro | Posted: 10/21/2005 3:08:04 PM |
Imcompensating

Posts: 741
RE: Intake turbine

Well if Tim Burton called it a Jet engine thingy DH, I am sorry I ever doubted you . I dont recall him making the vroom vroom noise though.
